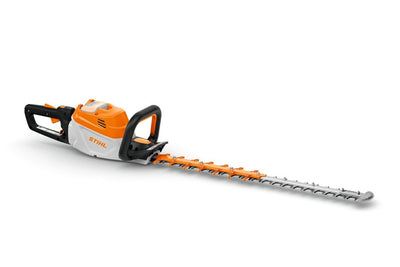

The extremely powerful, robust STIHL HSA 140 R battery hedge trimmer performs demanding work in professional garden and landscape maintenance as well as in municipal operations. Thanks to the low blade speed and double-sided cutting blade, specially designed for pruning, with wider tooth spacing even thicker twigs and branches can be cut efficiently and precisely with a constant stroke rate. The EC motor ensures consistent performance and long service life. You can use the controls located directly on the rotary multi-function control handle to adjust the stroke rate between three levels ranging from 2,600 strokes/minute to 3,400 strokes/minute.
The STIHL HSA 140 R battery hedge trimmer is extremely flexible with its plug-in lithium-ion battery from the STIHL AP System. Their low noise and vibration levels make it possible to cut hedges without hearing protection and even in noise-sensitive areas. The multi-function control handle, which can be rotated 90° to the right and left, always supports an ergonomically favourable working position when cutting in different directions. Friction-optimised blades enable longer battery life and increased service life. The screw-on cut protection and tip protectors protect you and the cutting attachment.
It is designed for use with the optionally available STIHL Smart Connector 2 A.
For the STIHL HSA 140 R, the splash protection that has already been proven by internal testing has also been certified in accordance with the IPX4 protection class.
Our overview of STIHL battery life and charging times shows how long you can work with your STIHL HSA 140 R battery hedge trimmer and how long the battery used takes to charge.
- Battery life with recommended AP 200 S battery: Up to 150 min
Technical details
| Rated voltage |
36 V |
| Power consumption |
0.65 kW |
| Power |
0.46 kW 1)
|
| Cordless power system |
AP |
| Recommended battery |
AP 200 S |
| Stroke rate |
2600 r/min |
| Stroke rate Level 2 |
3000 r/min |
| Stroke rate Level 3 |
3400 r/min |
| Device weight without battery |
4.7 kg 2)
|
| Cutting length |
75 cm |
| Tooth spacing |
38 mm |
| IPX Rating |
IPX4 |
| Min. battery working time AP 100 |
60 min 3)
|
| Max. battery working time AP 100 |
80 min 3)
|
| Min. battery working time AP 200 |
100 min 3)
|
| Max. battery working time AP 200 |
150 min 3)
|
| Min. battery working time AP 200 S |
100 min 3)
|
| Max. battery working time AP 200 S |
150 min 3)
|
| Min. battery working time AP 300 |
140 min 3)
|
| Max. battery working time AP 300 |
195 min 3)
|
| Min. battery working time AP 300 S |
175 min 3)
|
| Max. battery working time AP 300 S |
245 min 3)
|
| Min. battery working time AP 500 S |
210 min 3)
|
| Max. battery working time AP 500 S |
290 min 3)
|
| Min. battery working time AR 2000 L |
670 min 3)
|
| Max. battery working time AR 2000 L |
935 min 3)
|
| Min. battery working time AR 3000 L |
1005 min 3)
|
| Max. battery working time AR 3000 L |
1405 min 3)
|
| Device length with blade |
137 cm |
| Sound pressure level |
79 dB(A) 4)
|
| Sound power level |
87 dB(A) 4)
|
| Vibration level, left |
3 m/s² 5)
|
| Vibration level, right |
2.5 m/s² 5)
|
