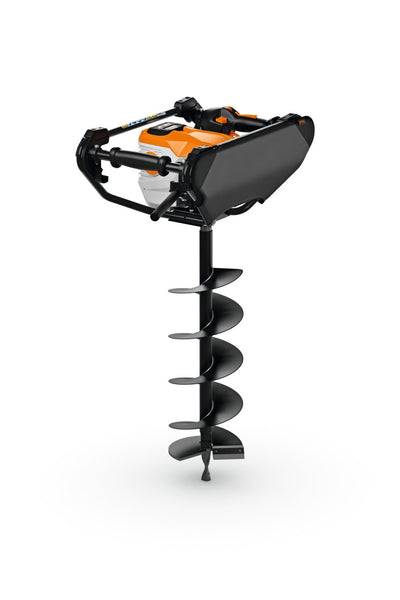

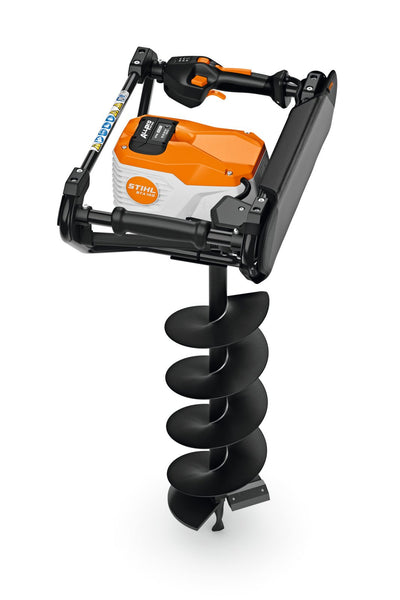

The STIHL BTA 140 Battery Earth Auger is built for professional applications in horticulture, landscaping, forestry, agriculture and construction. Capable of drilling holes up to 300 mm in diameter, it is ideal for installing posts, digging planting holes, creating drainage shafts and preparing small to medium-sized foundations.
Powered by the STIHL AP System, the high-performance EC motor delivers powerful, low-vibration operation with minimal maintenance. Its quiet performance allows for comfortable use in many environments, while the balanced design and close-to-body drilling axis provide greater control and reduced operator fatigue.
The BTA 140 features three operating modes to suit different applications: Slow for controlled, low-kickback drilling, Fast for challenging ground conditions, and Reverse to help release jammed auger bits. The selected mode is easily controlled from the ergonomic handle and displayed on the integrated screen.

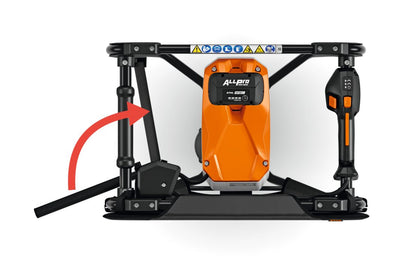

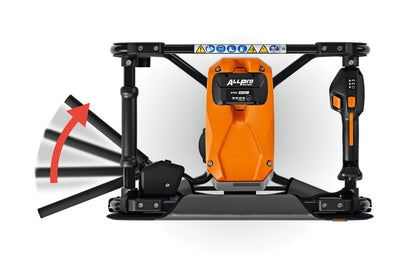

For added safety, the STIHL QuickStop system automatically stops the auger if excessive twisting is detected, helping reduce kickback and allowing work to resume quickly. A large support cushion improves comfort during operation, while the integrated transport bracket makes storage and transport easy and helps protect the QuickStop system.
For optimum performance, STIHL recommends pairing the BTA 140 with the AP 300.0 P battery.
Refer to the STIHL battery life and charging times guide to view compatible batteries, recommended battery options and expected runtimes.
Note: The BTA 140 is supplied as a powerhead only. Auger attachments, batteries and chargers are sold separately. Battery tools in the STIHL AP System are compatible with both ALLPRO and AP batteries.
Technical details
| Rated voltage |
36 V |
| Max. voltage |
40 V |
| Power consumption |
2.10 kW |
| Power |
1.70 kW |
| Cordless power system |
ALLPRO/AP |
| Recommended battery |
AP 300.0 P |
| Spindle speed, 1st gear |
170 r/min |
| Spindle speed 2nd gear |
230 r/min |
| Spindle speed reverse gear |
35 r/min |
| Device weight |
7.6 kg |
| Min. holes per battery charge AP 100.0 P |
60 1)
|
| Max. holes per battery charge AP 100.0 P |
90 1)
|
| Min. holes per battery charge AP 20.1 |
80 1)
|
| Max. holes per battery charge AP 20.1 |
120 1)
|
| Min. holes per battery charge AP 200.0 P |
120 1)
|
| Max. holes per battery charge AP 200.0 P |
180 1)
|
| Min. holes per battery charge AP 200 S |
100 1)
|
| Max. holes per battery charge AP 200 S |
150 1)
|
| Min. holes per battery charge AP 30.1 |
145 1)
|
| Max. holes per battery charge AP 30.1 |
220 1)
|
| Min. holes per battery charge AP 300.0 P |
180 1)
|
| Max. holes per battery charge AP 300.0 P |
270 1)
|
| Min. holes per battery charge AP 300 S |
150 1)
|
| Max. holes per battery charge AP 300 S |
230 1)
|
| Min. holes per battery charge AP 500 S |
180 1)
|
| Max. holes per battery charge AP 500 S |
270 1)
|
| Bore diameter at "Min. holes per battery charge" |
150 mm |
| Bore diameter at "Max. holes per battery charge" |
90 mm |
| Device width |
375 mm |
| Device height |
285 mm |
| Device length |
555 mm |
| Sound pressure level |
80 dB(A) 2)
|
| Sound power level |
91 dB(A) 2)
|
| Vibration level left |
2.4 m/s² |
| Vibration level right |
2.6 m/s² |
| IP Rating |
IPX4 |
